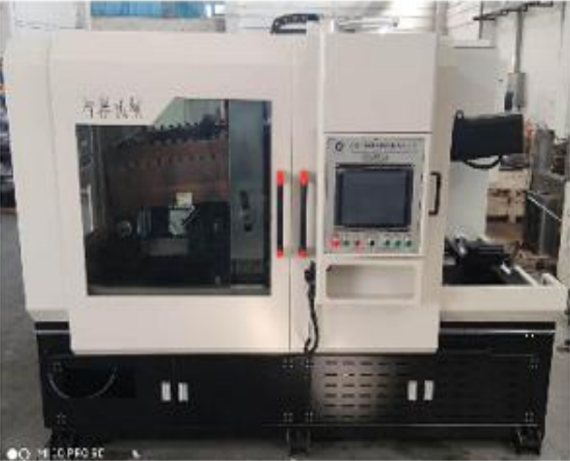

Our CNC skiving machine focuses on the processing of pure aluminum 1060 and 6063. It adopts the characteristics of combining numerical control and hydraulic pressure. The advantages are: Easy to debug without programming, unlimited material length, touch up and down adjustment of skive angle, step distance and skiove depth. Digital control precisely, easy to learn and use.
| Model No. | SQ600NC |
| Range | AL1060/AL6063 |
| X-axis | 1500 mm |
| Working desk size | 800 x 900 mm |
| Gantry door width | 1000 mm |
| Z-axis | 300 mm |
| X-axis rapid movement | 8m/min. |
| Z-axis rapid movement | 8m/min. |
| Max. length | 6000 mm |
| Max. width | 550 mm |
| Max. thickness of fin | 1.5 mm |
| Mini. thickness of fin | 0.1 mm |
| Max. pitch of fin | 10 mm |
| Mini. pitch of fin | 0.1 mm |
| Max. hight | 120 mm |
| Controller | M90 |
| X.Z axis motor | 3/14KW |
