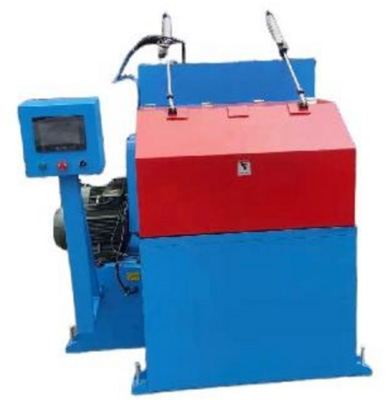

Automatic grinding fin machine is used for aluminum and copper skiving heat sink special
production equipment developed for deburring process of skiving fin.
Mass production of deburring, this model is easy to learn with excellent processing ability.
1. Advantages of the model
The SQ1000MC model can be grinding and deburring the fin within 1000mm width, and
the highest fin is 200mm.
Large size processing capacity brings high production efficiency and lower production cost!
2. Easily operation
Adopts PLC automatic programming control, the characteristics of good operation and
labor saving.
| Model No. | SQ100NC |
| Range | Aluminum heat sink |
| Max, Length | 1000 mm |
| Motor Power | 5.5 KW |
| Max. Width | 600 mm |
| Machine Power | 12 KW |
| Max. Height | 200 mm |
| Machine Size | 2300x1900x2200 mm |
| Griding Tool Width | 1050 mm |
| Machine Weight | 750 KG |
| Clamping | Automatic |
| Controller | Mitsubishi |
| Workbench | Automatic Lift |
| Safety Gate | Automatic |
| Main Shaft | Ø 45 mm |
| Touch Screen | Weintek |

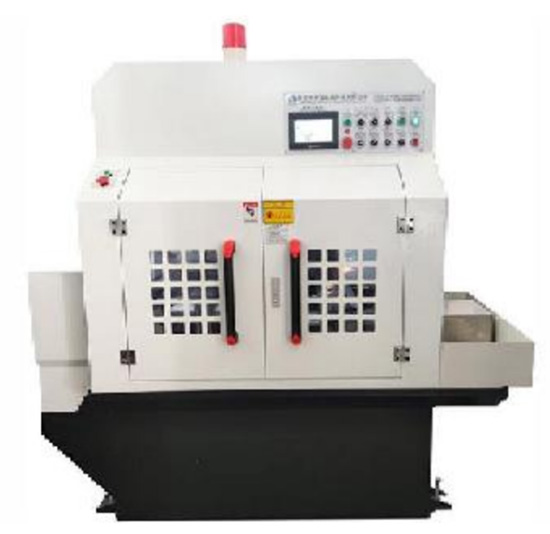

The CNC leveling machine is used for aluminum and copper skiving heat sink special
production equipment developed by flat fins process.
Mass production of flat fins, this model is easy to learn with excellent processing ability.
1. Advantages of the model
The SQ400A model can be within a width of 400mm, and the highest fin is 100mm.
The SQ600A model can be within 600mm wide, and the highest fin is within 120mm.
Heat sink with no limit on the length of processing material can be processed in flat fin
process!
The processing capacity of large size and unlimited length brings high production efficiency
and lower material cost!
2. Easily operation
The model adopts advanced multi-axis servo control system, aiming at feeding, hobbing
and cutting,
The three axes of tool height and height are all controlled by servo digital, which is easy
to use and easy to adjust.
The feeding system of the model adopts the Delta precision servo motor drive system and
cooperates with the front and rear.
The synchronous feeding method realizes the whole flat fin without tailing.
The material loading of the model is designed horizontally, which reduces the difficulty of
operation and makes the material loading operation easy for operator.
The model adopts a large 7-inch touch screen, and the flat fin can be controlled by inputting values on the touch screen.
The height and feed speed simplify the adjustment difficulty, allowing novices to quickly
master the adjustment method!
The model is equipped with a quantitative shutdown function, and the automatic shutdown
can be combined with the setting to make the operation of the machine more efficient and
simple.
| Model No. | SQ400A/SQ600A |
| Range | Flatting fins for aluminum & copper heat sink |
| Max, Length | 6000 mm |
| Motor Power | 5.5 KW/7.5 KW |
| Max. Width | 400 mm/600 mm |
| Machine Power | 12 KW/15 KW |
| Max. Height | 100 mm/120 mm |
| Machine Size | 2100x2000x2200 mm / 2350x2160x2250 mm |
| Blade | D125-D130 mm |
| Machine Weight | 2.1 Ton/2.8 Tons |
| Shaft Speed | 0-6000r/min |
| Controller | Fatek |
| Linear and Screw | Hiwin / TBI |
| Blade Quantity | 1 |
| Voltage | 380V |
| Touch Screen | Fatek |
| Servo Motor | Sa Chuan |
| X/Y/Z Axis Cutting | 5 M/min |
