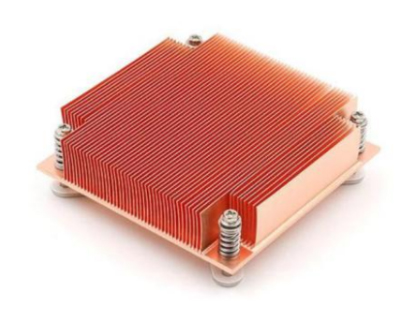

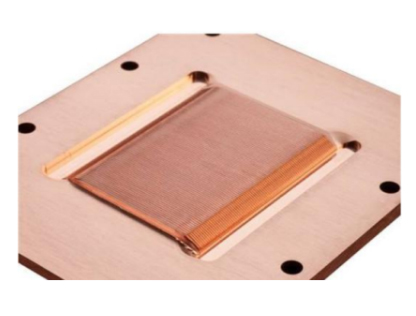

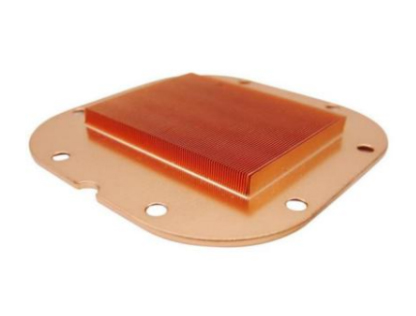

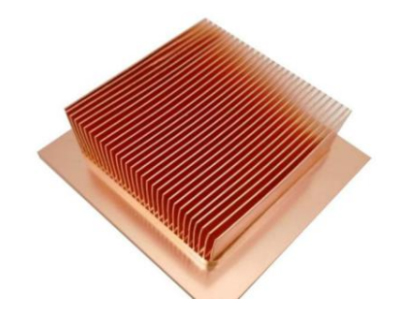

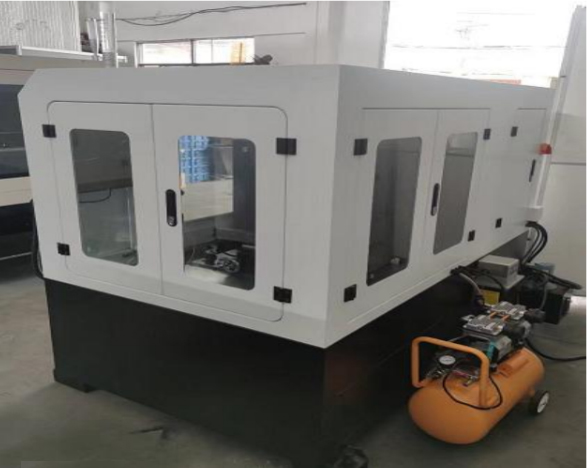

Our CNC skiving machine focuses on the processing of pure aluminum 1060 and 6063 and pure copper CU1100, this model SQ150NC focuses on copper heat sink and water cooling heat sink processing. The advantages are: easy debugging without programming, angle lifting hand wheel adjustment, precise numerical control of step distance and blade depth, easy to learn and use, and efficient production.
| Model No. | SQ150NC |
| Range | 1060/6063/CU1100 |
| Working desk | 300 x 300 mm |
| X-axis | 500 mm |
| Z-axis | 150 mm |
| Width of Blade | 150 mm |
| Max. Speed | 60 fins/min. |
| Max. Thickness | 1 mm |
| Mini. Thickness | 0.06 mm |
| Servo Motor Power | 2.3 KW |
| Machine Power | 5 KW |
| Machine Size | 1760 x 1035 x 1600mm |
| Machine Weight | 960 Kgs |
| Controller | Taiwan LNC |
| Blade Quantity | 1 |
| Touch Screen | 7" |
| Servo Motor | Maxsine |
| Linear and screw | Hiwin / TBI |
