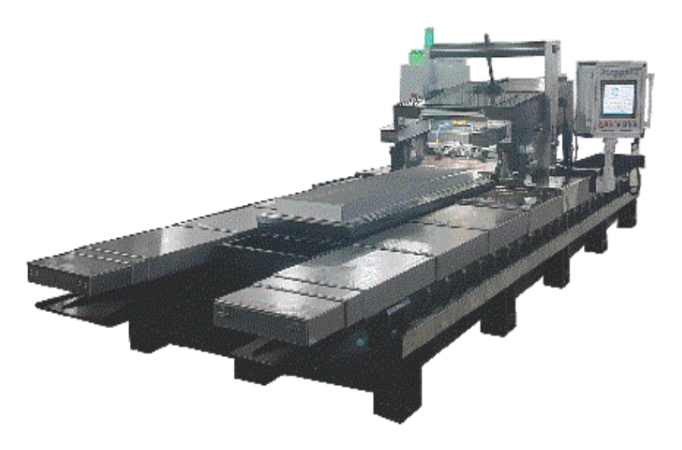

Shenqi brand CNC metal skiving machine SQ700SK focuses on the skiving processing
of pure copper CU1100, pure aluminum 1060 and 6063. It adopts full CNC design and
combines the Taiwan Baoyuan system with Shenqi's CNC metal skiving machine
V1.O system.
The advantages are:
1. Integrated casting bed body.
2. Easy debugging without programming required.
3. 700mm * 4-meter ultra large vacuum suction cup workbench.
4. Newly upgraded with no tail material.
5. Touch controlled lifting adjustment for skiving angle.
6. Digital precision control of pitch distance and depth of fin.
7. Dual-mode control system.
8. Intelligent storage and retrieval of processing parameters and material numbers.
9. Simple and intelligent signboard.
10. Automatic lifting of materials.
11. One-button vacuum automatic oil drainage.
12. Vacuum leakage shutdown protection.
13. One-click material suspension universal movement function.
14.Equipped with electric loading and unloading rack.
15. Provide precision tool setting instrument.
| Model No. | SQ700SK |
| X-axis travel | 4500 mm |
| Workbench size | 700 x 4000 mm (Vacuum suction cup) |
| Gantry Gate Size | 1000 mm |
| Y-axis travel | 400 mm |
| X-axis rapid movement | 8 M/min |
| Y-axis rapid movement | 8 M/min |
| Max. length of skiving fin | 4000 mm |
| Max. width of skiving fin | 700 mm |
| Max. thickness of skiving fin | 1.5 mm |
| Min. thickness of skiving fin | 0.1 mm |
| Max. pitch of skiving fin | 11 mm |
| Min. pitch of skiving fin | 1 ratio 2 |
| Max. height of skiving fin | 140 mm |
| Repetitive positioning accuracy | Less than 0.02mm |
| Material positioning method | Vacuum suction |
| Control System | M90 |
| X1, X2, Y axis motors | 7.5/7.5/15 KW |
| X1, X2, Y axis linear | 80/80/80 mm |
| X, Y guide rail | Hard rail |
| Bearings | TAC |
| Lubricating oil pump | 450W |
| Electrical appliances | Standard |
| Guideway lubricating oil pump | Standard |
| Lubricating oil pipe | Standard |
| Knife sharpening stand | 1 set |
| Skiving knife | 1 set |
| Size of machine | 7500 x 2500 x 1860 mm |
| Machine Weight | Approximately 16 Tons |
