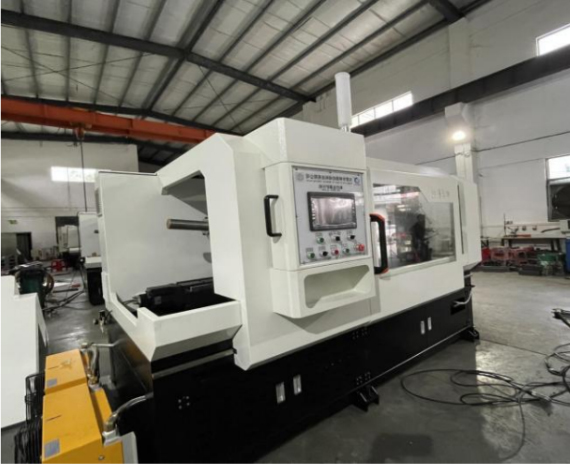

Our CNC skiving machine focuses on the processing of pure aluminum 1060 and 6063 and pure copper CU1100. The combination of CNC and hydraulic characteristics is perfectly integrated. The characteristics of the CNC skiving machine V1.0 system developed are: Easy to debug, no programming required, unlimited material length, touch cutting angle adjustment, digital display of angle, servo hydraulic control system, digital precise pressure regulation, digital control step distance, external water cooling is optimized for air cooling, easy to learn and use .
| Model No. | SQ600ZX |
| Range | 1060/6063/CU1100 |
| Max, Length | Unlimited |
| Max. Width | 580 mm |
| Max. Height | 120 mm |
| Width of Blade | 620 mm |
| Max. Speed | 70 fins/min. |
| Max. Thickness | 2 mm |
| Mini. Thickness | 0.1 mm |
| Servo Motor Power | 28 KW |
| Machine Power | 32 KW |
| Machine Size | 2920 x 1750 x 2500 mm |
| Machine Weight | 7.5 Tons |
| Controller | Mitsubishi FX3GA |
| Blade Quantity | 1 |
| Touch Screen | 10" |
| Servo Motor | Delta |
| Linear and screw | Hiwin / TBI |
